ANHUI CHENYU MECHNICAL CO.LTD
| Place of Origin: | China ,LUAN |
|---|---|
| Brand Name: | Yongchen |
| Certification: | ISO 9001 ， ISO14001, CE |
| Model Number: | DCS-50FE1 |
| Minimum Order Quantity: | 1set |
| Packaging Details: | Wooden case |
| Delivery Time: | 30days after receive the payment |
| Supply Ability: | 100set |
| Name: | Vacuum Machine For Packing | Weigh Range(kg): | 10-50kg |
|---|---|---|---|
| Weighing speed(bag/h): | 10kg 480 Bags/h 25kg 300 Bags/h 50kg 300 Bags/h | Packing Speed: | 10kg 600 Bags/h 25kg 500 Bags/h 50kg 250 Bags/h |
| Dimension(mm): | 5500*3800*3200 | ||
| High Light: | QZB-700 Grain Packing Machine,700bag/h Grain Packing Machine,9m3/h Rice Bagging Machine |
||

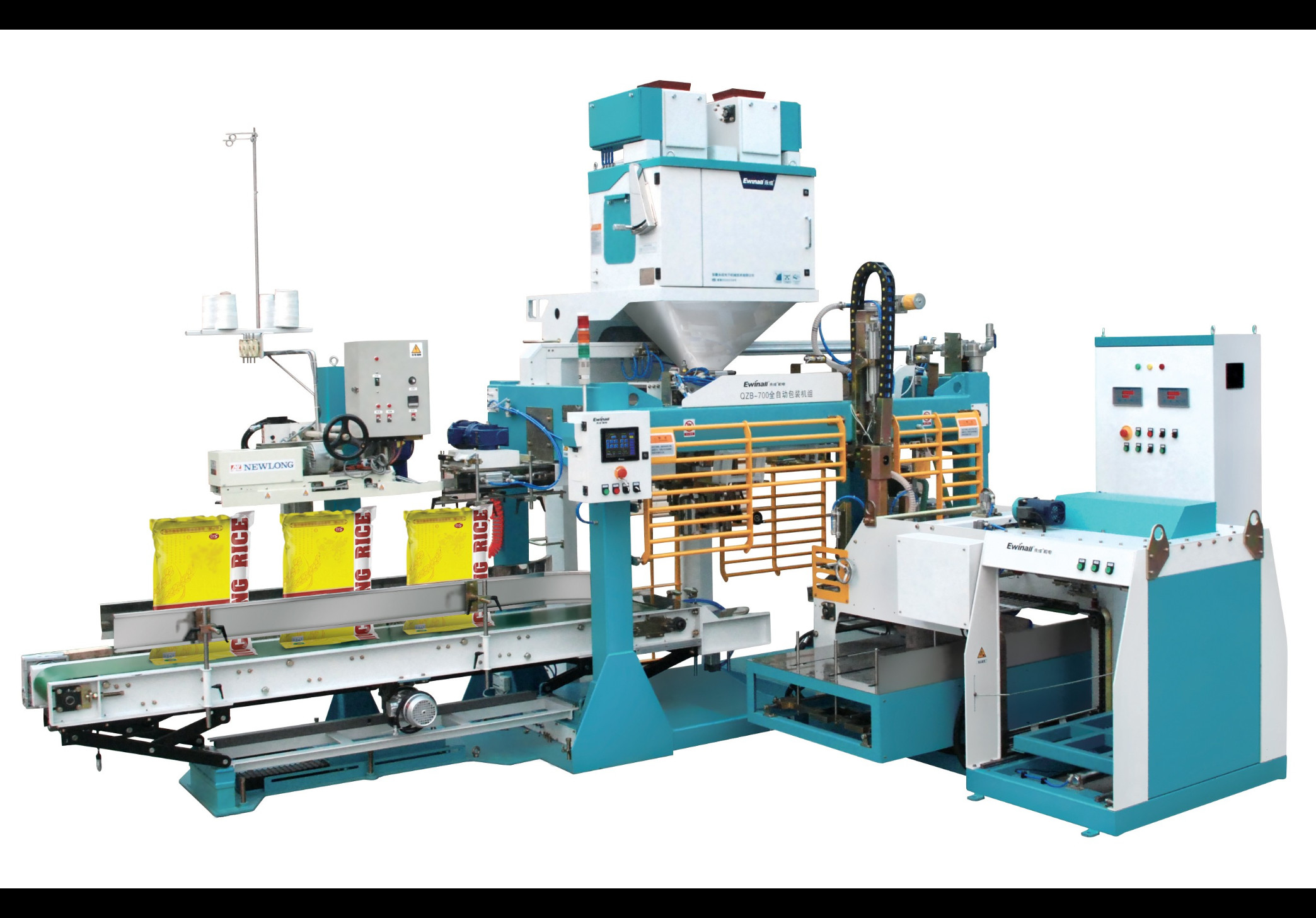

QZB-700 Vacuum Packing Machine Fully Automatic
Product Feature
Auto lifting conveyor
PLC+weighing controller
Pass ISO9001:2008 and TUV
Auto sewing and thread cutting
Easy installation and operation
All the parts contact with material are stainless steel
Selectable sealing types:sewing machine or heat sealer
| Feeding type | Feeding by gravity |
| Structural features | Cylinder type,three-sensor |
| Suitable material | Granule |
| Weighing precision | ±0.1%~±0.2% |
| Packing speed(bag/h) | 400-700 |
| Form | TN-S |
| Air pressure | 0.5~0.7Mpa |
| Total air consumption | 9m3/h |
| Total power consumption | AC380V±10% 50Hz Three-phase five little system 6KW |
| Environment temperature | 0~40℃ |
| Ambient humidity | Less than 90%RH at 40C,higher humidity is permitted at lower temperature |
| Dimensions(mm) L*W*H | 5500*3800*3200 |
| PACKAGE | SPEED |
| 5kg | 650-750BAGS/H |
| 10kg | 600-700 BAGS/H |
| 15kg | 600-700 BAGS/H |
| 25kg | 420-480 BAGS/H |
