ANHUI CHENYU MECHNICAL CO.LTD
| Place of Origin: | China ,LUAN |
|---|---|
| Brand Name: | Yongchen |
| Certification: | ISO 9001 , ISO14001, CE |
| Model Number: | DCS-50FE1 |
| Minimum Order Quantity: | 1set |
| Packaging Details: | Wooden case |
| Delivery Time: | 30days after receive the payment |
| Supply Ability: | 100set |
| Name: | Rice Packaging Machine | Weigh Range(kg): | 10-50 |
|---|---|---|---|
| Weighing speed(bag/h): | 10kg 480 Bags/h 25kg 300 Bags/h 50kg 300 Bags/h | ||
| High Light: | 25Kg Food Grains Packing Machine,TUV Food Grains Packing Machine,Yongchen 25 Kg Rice Packing Machine |
||

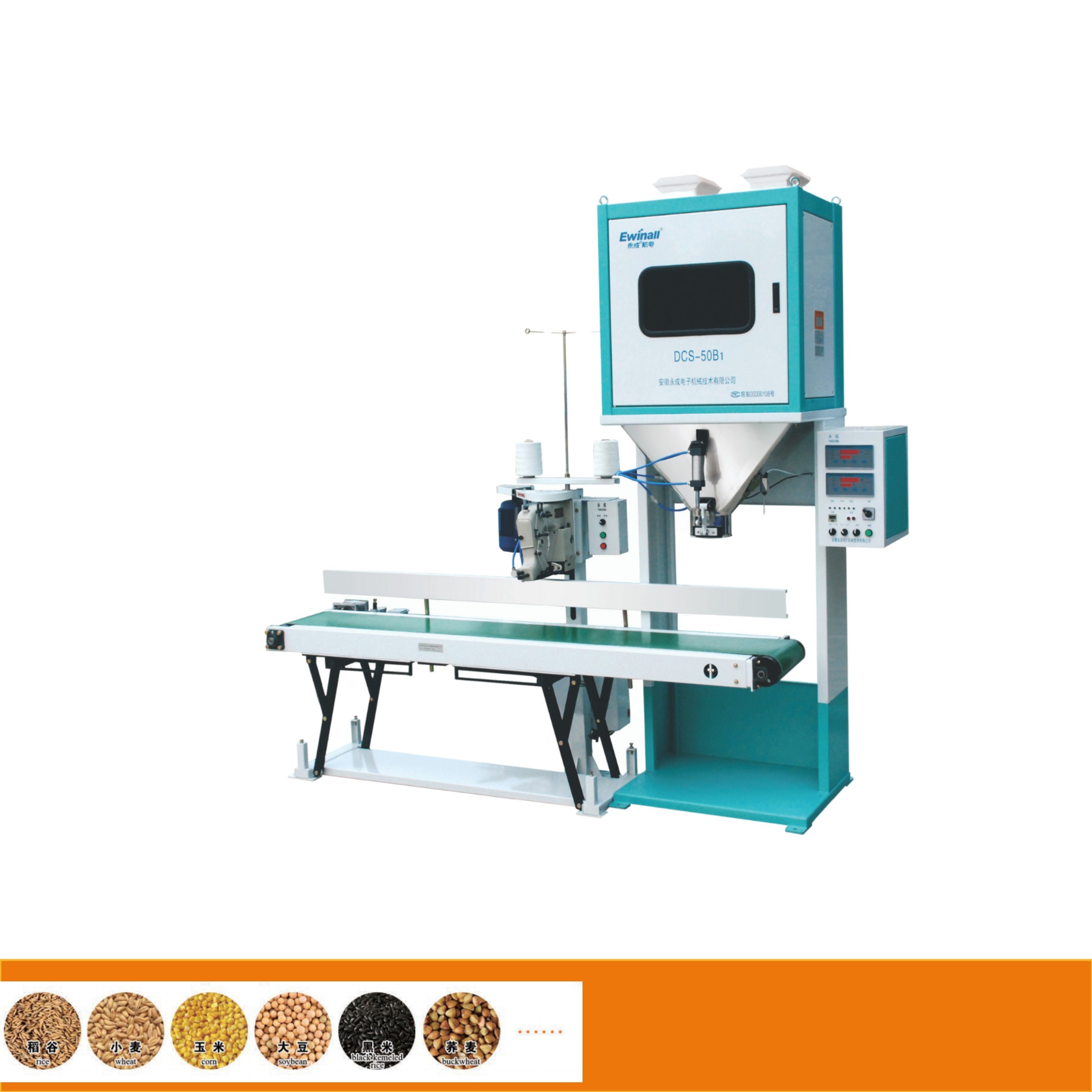

Food Grains Packing Machine , 25 Kg Rice Packing Machine
Product Feature
Auto lifting conveyor
PLC+weighing controller
Pass ISO9001:2008 and TUV
Auto sewing and thread cutting
Easy installation and operation
All the parts contact with material are stainless steel
Selectable sealing types: sewing machine or heat sealer
Brand of main components
PLC:OMRON(Japan)
Air cylinde:Airtac(Taiwan)
Button:IDEC(Japan)
Sensor:OMRON
Solenoid valve: Airtac(Taiwan)
Sewing machine:Qinggong
Key datas
| Model | DCS-50B1 | DCS-50B2 |
| Weighing Range(kg) | 5--50 | |
| Division(g) | 2 | |
| Weighing Error | 0.1%F.S | |
| Packing speed(bag/h) |
10kg 600 bags/h 25kg 500 bags/h 50kg 250 bags/h |
|
| Working Environment(power Supply) | Relative humidity (RH) ≦90% ,4N-AC380V 50Hz | |
| Power Consumption Air Consumption | 1.1KW 0.4-0.5Mpa compressed air 1m³/h | |
| Dimension(mm) | 2911x849x2626 | |
