ANHUI CHENYU MECHNICAL CO.LTD
| Place of Origin: | China ,LUAN |
|---|---|
| Brand Name: | Yongchen |
| Certification: | ISO 9001 , ISO14001, CE |
| Model Number: | DCS-50E1 |
| Minimum Order Quantity: | 1set |
| Packaging Details: | Wooden case |
| Delivery Time: | 30days after receive the payment |
| Supply Ability: | 100set |
| Name: | Automatic Grain Packing Machine | Weigh Range(kg): | 10-50 |
|---|---|---|---|
| Weighing speed(bag/h): | 10kg 480 Bags/h 25kg 300 Bags/h 50kg 300 Bags/h | ||
| High Light: | 0.5Mpa Grain Packing Machine,0.7KW Grain Packing Machine,300Bags/H Grain Packaging Machine |
||

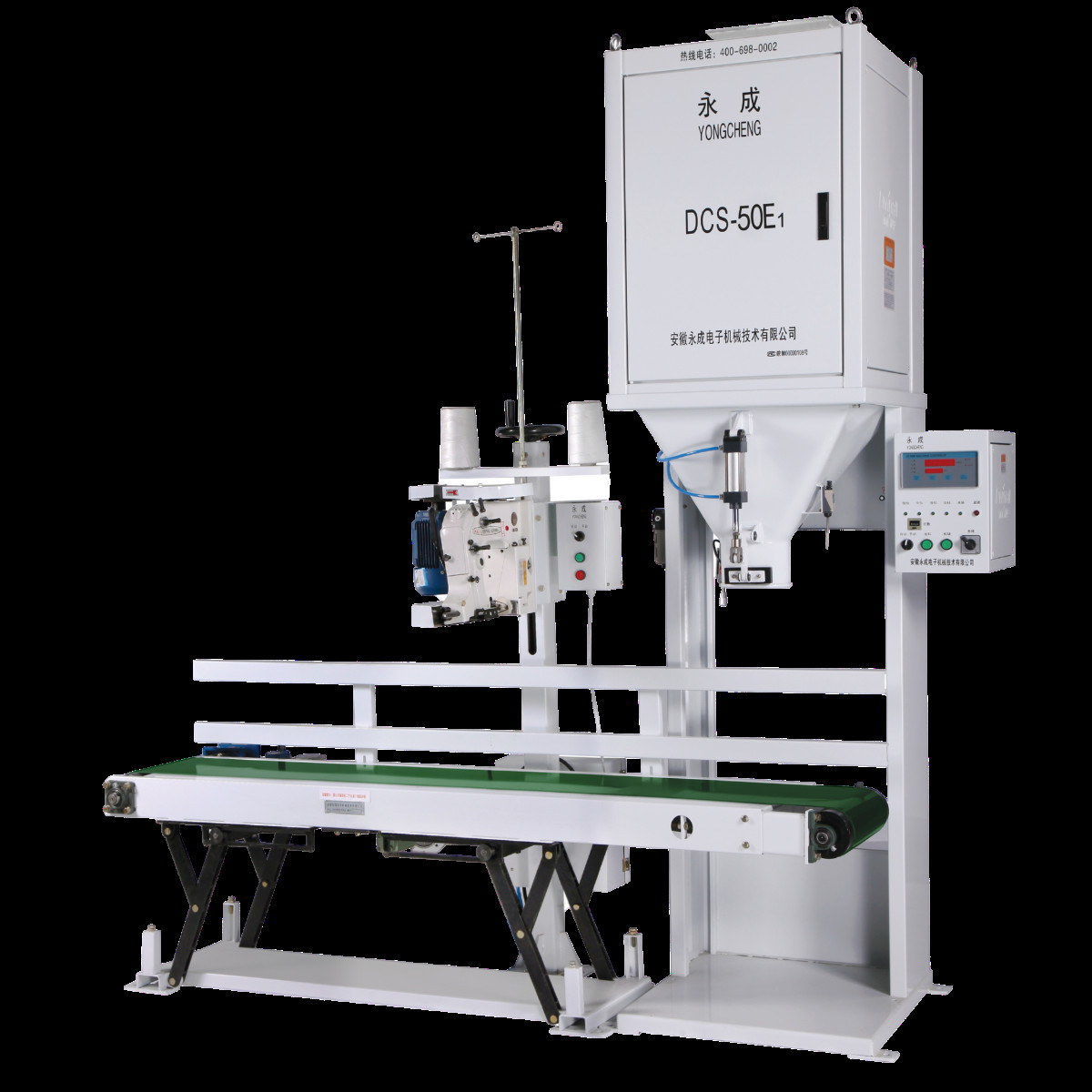

Packing Machine Main DCS-50E1
Product Feature:
• Auto lifting conveyor
• PLC+weighing controller
• Pass ISO9001 : 2008 and TUV
• Auto sewing and thread cutting
• Easy installation and operation
• Three load cell structure to keep more stable
• All the parts contact with material are stainless steel
• Can reserve 232/485 interface,good for management
• Selectable sealing types:sewing machine or heat sealer
• Can fill with nitrogen or carbon dioxide to have vacuum packing
• Auto lift conveyor,up and down automatic
• All closed structer can prevent dirty from outside
• OMRON sensor and PLC,can reach automatic more steady
• Two counting system,let work more easy
• From beginning to end,one worker can operate easily
• The best SMC cylinder and solenoid valve can working long time
Key datas :
| Model | DCS-50E1 |
| Weigh Range(kg) | 10-50 |
| Division value(g) | 5 |
| Weighing error | 0.1%F.S |
| Weighing speed(bag/h) |
10kg 480 bags/h 25kg 300 bags/h 50kg 300 bags/h |
|
Working environment power supply |
Relative humidity (RH) ≦90%,4N-AC380V 50Hz |
| Power consumption &Air consumption | 0.7KW 0.4-0.5Mpa compressed air 1m3/h |
|
Dimension(mm) L×W×H |
2846×1025×2738 |
