Place of Origin: | China ,LUAN |
---|---|
Brand Name: | Yongchen |
Certification: | ISO 9001 , ISO14001, CE |
Model Number: | DCS-50FE1 |
Minimum Order Quantity: | 1set |
Packaging Details: | Wooden case |
Delivery Time: | 30days after receive the payment |
Supply Ability: | 100set |

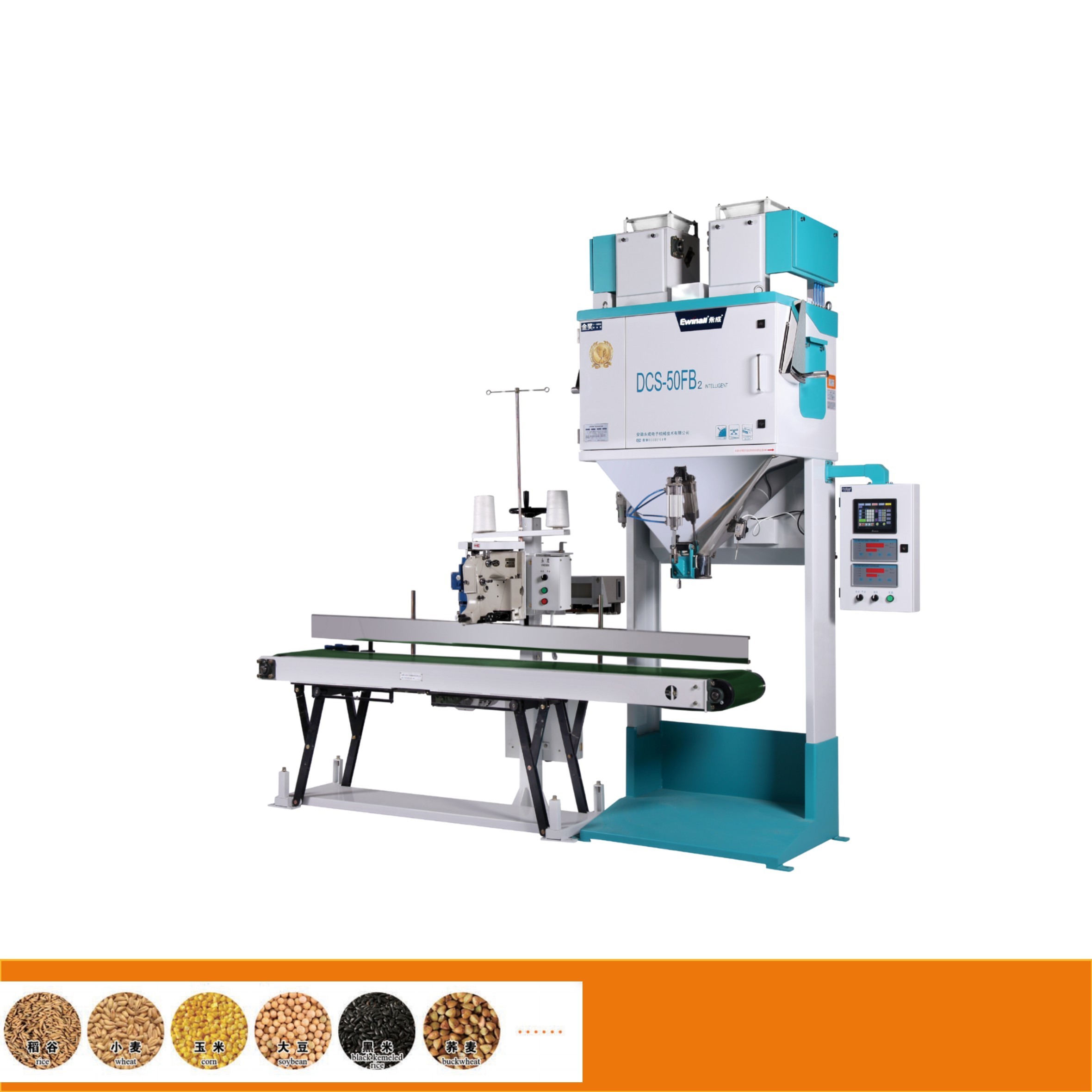

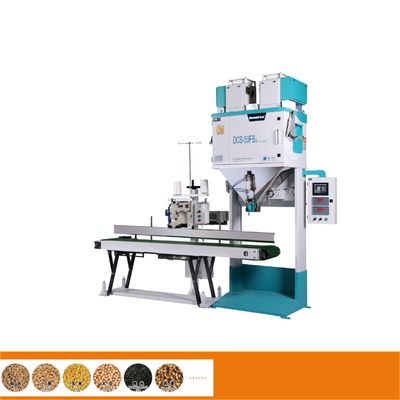

Name: | 50 Kg Rice Packing Machine | Weigh Range(kg): | 10-50 |
---|---|---|---|
Weighing speed(bag/h): | 10kg 480 Bags/h 25kg 300 Bags/h 50kg 300 Bags/h | ||
High Light: | DCS-50FE1 Grain Bagging Machine,50 Kg Grain Bagging Equipment,300bags/h 50 Kg Rice Packing Machine |
Grain Bagging Machine , Wheat Packing Machine
Product Feature:
• Auto lifting conveyor
• PLC+weighing controller
• Pass ISO9001:2008 and TUV
• Auto sewing and thread cutting
• Easy installation and operation
• Three load cell structure to keep more stable
• All the parts contact with material are stainless steel
• Can reserve 232/485 interface,good for management
• Selectable sealing types:sewing machine or heat sealer
• Can fill with nitrogen or carbon dioxide to have vacuum packing
• Auto lift conveyor,up and down automatic
• All closed structer can prevent dirty from outside
• OMRON sensor and PLC,can reach automatic more steady
• Two counting system,let work more easy
• From beginning to end,one worker can operate easily
• The best SMC cylinder and solenoid valve can working long time
Key datas :
Model | DCS-50FE1 |
Weigh Range(kg) | 10-50 |
Division value(g) | 5 |
Weighing error | 0.1%F.S |
Weighing speed(bag/h) |
10kg 480 bags/h 25kg 300 bags/h 50kg 300 bags/h |
Working environment power supply |
Relative humidity (RH) ≦90%,4N-AC380V 50Hz |
Power consumption &Air consumption | 0.7KW 0.4-0.5Mpa compressed air 1m3/h |
Dimension(mm) L×W×H |
2846×1025×2738 |
