Place of Origin: | Lu'An China |
---|---|
Brand Name: | ChenYu Technology |
Certification: | ISO9001, ISO14001, CE, Different Kinds of Chinese National Certificates |
Model Number: | 5L-70plus |
Minimum Order Quantity: | 1 Set |
Packaging Details: | Wooden Case |
Delivery Time: | 30 Working Days |
Power: | 3.00 KW | Weight: | 4232 KG |
---|---|---|---|
Heating Model: | Indirect Hot Air Heating, Automatic Temperature Controlling | Combustion Mode: | Floor Installation |
Rated Heat: | 700,000 Kcal | Voltage: | Three Phase 380V, Single Phase 220V/50HZ (or Customized) |
Applicable Industries: | Manufacturing Plant, Food & Beverage Factory, Farms, Retail, Food Shop, Energy & Mining, Food & Beverage Shops | Applied Fuel: | Multi Biomass Fuels Optional |
Output Temperature: | ≤120 ℃ | Warranty: | 12 Months |
High Light: | 2.2m3 Rice Husk Furnace,3KW Biomass Burner,40kg/H Biomass Burner |

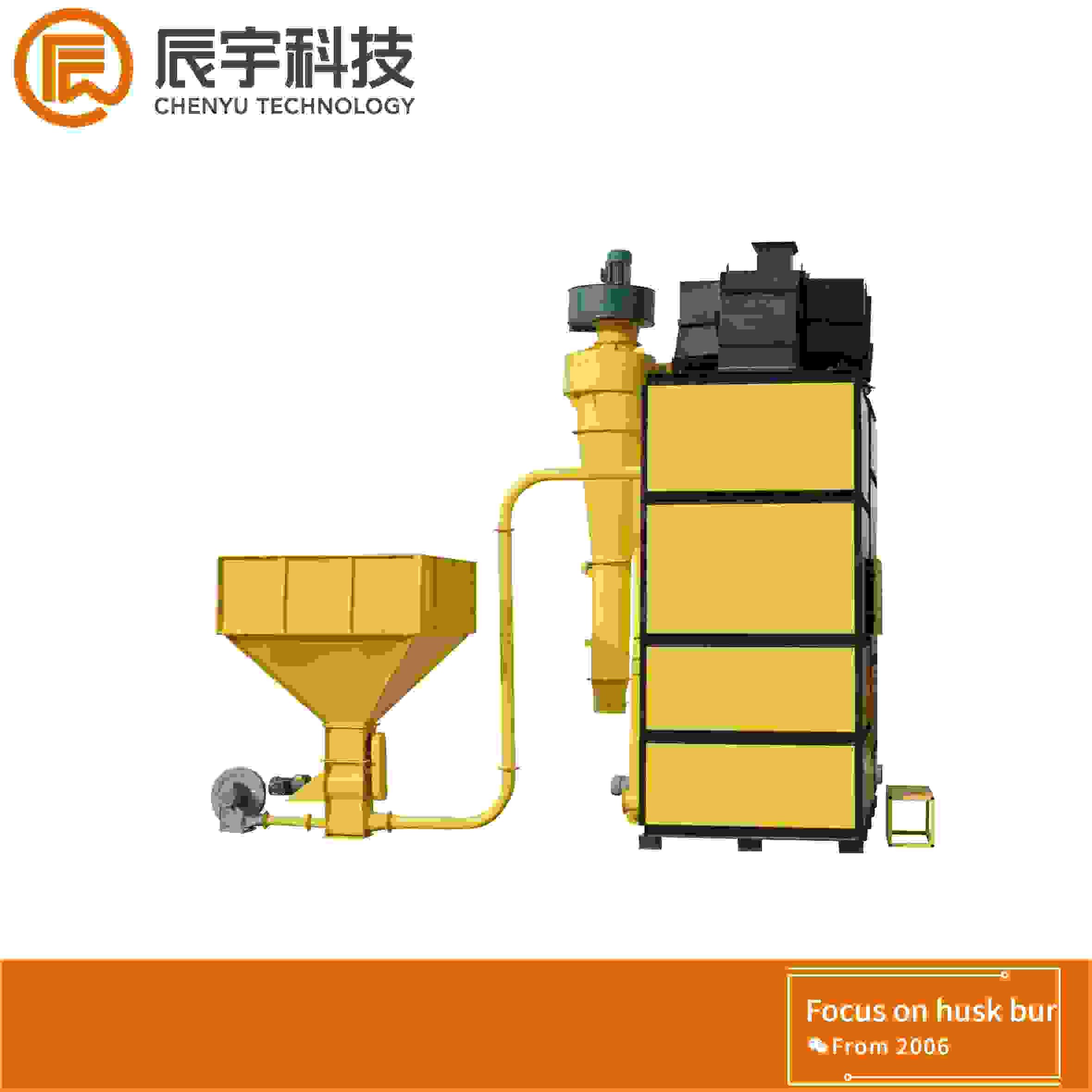

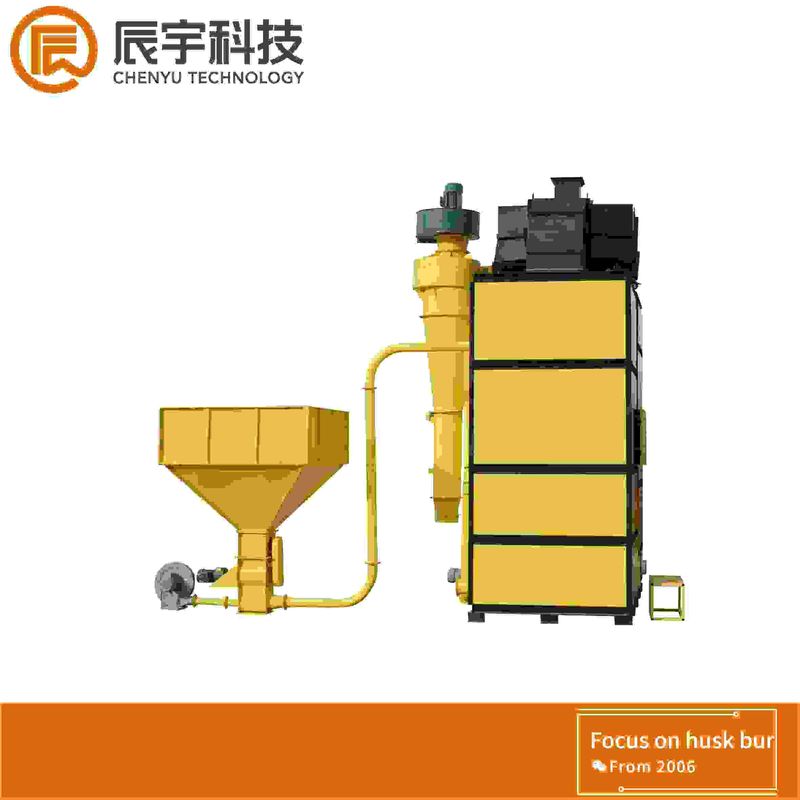

Our Husk burner
Production Information:
1. Multi biomass fuels for choice, energy saving and environment friendly.
2. Automatic feeding/ ash removal/ cyclone for choice.
3. Indirect hot air heating, no pollution.
4. Automatic temperature controlling, temperature difference:±1℃.
Our Key Parameters
Model | 5L-70 Plus |
Combustion mode | Suspended burning |
Total heat exchange area (m2) | 83.6 |
Furnace volume(m3) | 2.2 |
Grate volume(m3) | 0.7 |
Thermal power(kj/h) | 2.51×106 |
(%) Thermal efficiency | ≥80 |
Air heater mode | 4-72-C Style |
(kg/h) ash output | 20-40 |
(℃) hot air temperature | 120 |
(kW) Motor power of hot-air blower | 3 |
Model of smoke blower | 4-72 3.2A |
(kW) Total motor power | 5 |
(m) Height of the funnel | Above the chimney tallest building 3m radius around 50m disance |
(mm) Overall dimension(LxWxH) | 4400x3100x4744 |
(T) Total weight | 10 |
Rated heat | 70 |
Heating mode | Indirect hot air heating, automatic temperature controlling |
Feeding mode | feeding automatically(straw) |
Applied fuel | rice hull, straw |
(Kg/h) Rated fuel combustion | rice hull:100-200 |
Qty and model of dryers | 5HCY-15H:2-4Sets |
5HCY-30:1-2Sets | |
Safety device | Thermal-over relay, automatic constant temperature device, Hot air temperature sensor, overheating protection device, overload protection device, leakage protection device |
1. Thermal energy, husk consumption and exhausted ash production listed above are for reference only, actual data will differ from variety, moisture content and impurity rate.
2. Specification subject to change without notice.
