Place of Origin: | Lu'An China |
---|---|
Brand Name: | ChenYu Technology |
Certification: | ISO9001, ISO14001, CE, Different Kinds of Chinese National Certificates |
Model Number: | 5L-40 |
Minimum Order Quantity: | 1 Set |
Packaging Details: | Wooden Case |
Delivery Time: | 30 Working Days |
Applicable Industries: | Manufacturing Plant, Food & Beverage Factory, Farms, Retail, Food Shop, Energy & Mining, Food & Beverage Shops | Voltage: | Three Phase 380V, Single Phase 220V/50HZ (or Customized) |
---|---|---|---|
Power: | 3.12 KW | Weight: | 3668 KG |
Dimension(LxWxH)mm: | 4055 X 1600 X 3135 | Heating Model: | Indirect Hot Air Heating, Automatic Temperature Controlling |
Ignition Mode: | Manual | Combustion Mode: | Floor Installation |
Rated Heat: | 400,000 Kcal | Applied Fuel: | Multi Biomass Fuels Optional |
Output Temperature: | ≤120 ℃ | After-sales Service Provided: | Field Installation, Commissioning And Training, Engineers Available To Service Machinery Overseas |
Warranty: | 12 Months | ||
High Light: | 5L-40 Rice Husk Burner,400000 Kcal Husk Burner |

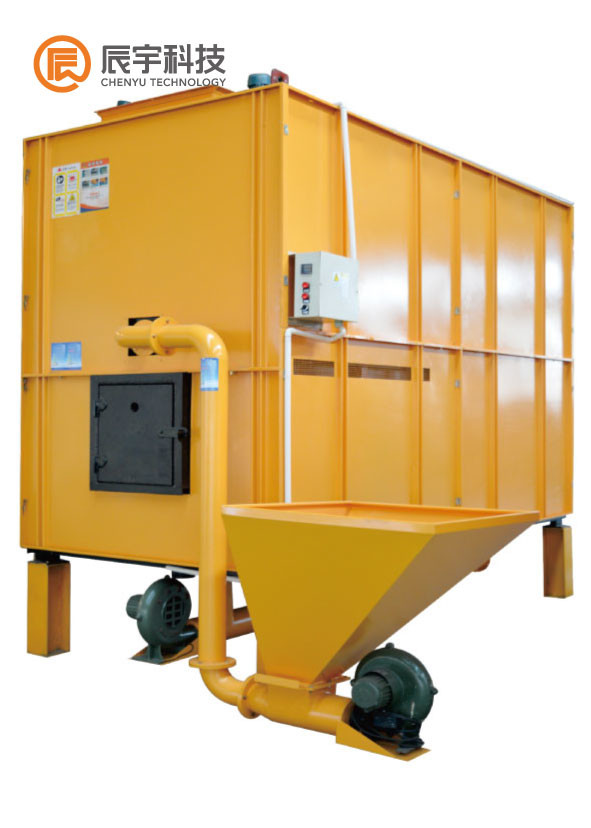

5L-40 Classic Husk Burner with 400 000 Kcal for Heat Supplying
Production Information:
1. Multi biomass fuels for choice, energy saving and environment friendly.
2. Automatic feeding/ ash removal/ cyclone for choice.
3. Indirect hot air heating, no pollution.
4. Automatic temperature controlling, temperature difference:±1℃.
Parameters:
Model | 40 Classic Husk Burner |
Rated Heat (Kcal/Hour) | 400,000 |
Hot Air Temperature (℃) | 60-120 |
Heating Mode | Indirect Hot Air Heating, Automatical Temperature Controlling |
Ignition Mode | By Man |
Feeding Mode | Manual/ Automatic (if use chaff, optional) |
Ash Removal Mode | Manual/ Automatic (Optional) |
Exhaust Fan Mode | 4-72-3.2A |
Hot Air Output (m³/Hour) | 26706-40059 |
Applicable Combustion Materials | Rice Hull, Firewood, Straw, Anthracite |
Thermal Efficiency (%) | ≧60 (if rice hull burning) |
Total Weight (KG) | 3668 |
Dimension (L x W x H mm) | 4055 x 1600 x 3135 |
Power | 3.12 |
Equipped Dryers Model and Qty | 5HCY-15H 3 Sets |
5HCY-30 1 Set | |
/ | |
Safe Device | Thermo-over Relay, Automatic Constant Temperature Device, Hot Air Temperature Sensor, Overheat Protectine Device, Leakage Protection Device, Automatic Synchronization of Smoke Emission, Air Supply and Temperature Control |
1. Thermal energy, husk consumption and exhausted ash production listed above are for reference only, actual data will differ from variety, moisture content and impurity rate.
2. Specification subject to change without notice.
