ANHUI CHENYU MECHNICAL CO.LTD
| Place of Origin: | LU'AN CHINA |
|---|---|
| Brand Name: | ChenYu Technology |
| Certification: | ISO9001, ISO14001, CE |
| Model Number: | 5HCY-15H |
| Minimum Order Quantity: | 1 Set |
| Price: | USD 16500-19500 |
| Packaging Details: | High-grade wooden case with reinforcing rib and vane or follow customer request |
| Delivery Time: | 30 working days or To be negotiated |
| Supply Ability: | 100set /30days |
| Type: | Grain Drying Equipment | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
|---|---|---|---|
| Drying Type: | Mixed Type | Color: | Customer Requried Or Stardard Configration |
| Power: | 7.87 | Use: | Rice Paddy Drying |
| Applicable Industries: | Food & Beverage Factory, Farms, Food Shop, Food & Beverage Shops | Drying Rate: | From 0.5%-1.2% |
| Highlight: | 2800 kg Paddy Dryer Machine,12T/batch Paddy Dryer Machine,Rice Paddy Dryer |
||
12ton Per Batch Type Paddy Dryer Machine With Heating Exchange
Automatic Control Software
Chenyu Dryer is equipped with full color touch panel and automatic control software. The Satake developed software provides full automatic drying operation to dry down the product to the target moisture with an ideal drying pattern to achieve the low crack rate after drying.
Single Grain Moisture Meter
High accuracy single grain moisture meter (Made in Japan) capable of continuously measuring every kernel. Measurement stability is immune to immature grains containing high moisture content. Any foreign materials ingress during measurement, are discharged automatically.
Outside Humidity Sensor
In addition to ambient temperature sensor, humidity sensor is also equipped to collect more information to calculate ideal drying pattern
Optimum Drying
Chenyu has developed the concept of “Optimum Drying “ in its pursuit of total Engineering for the Grain Process. “Optimum Drying” consists of three objectives;" to achieve higher yield, to dry rapidly and to dry effectively."
The Better Solution in Drying
Chenyu Dryer gives you the best solution to the problems in drying by means of chenyu original calibration formula and automatic control of hot air, circulation speed & air volume.

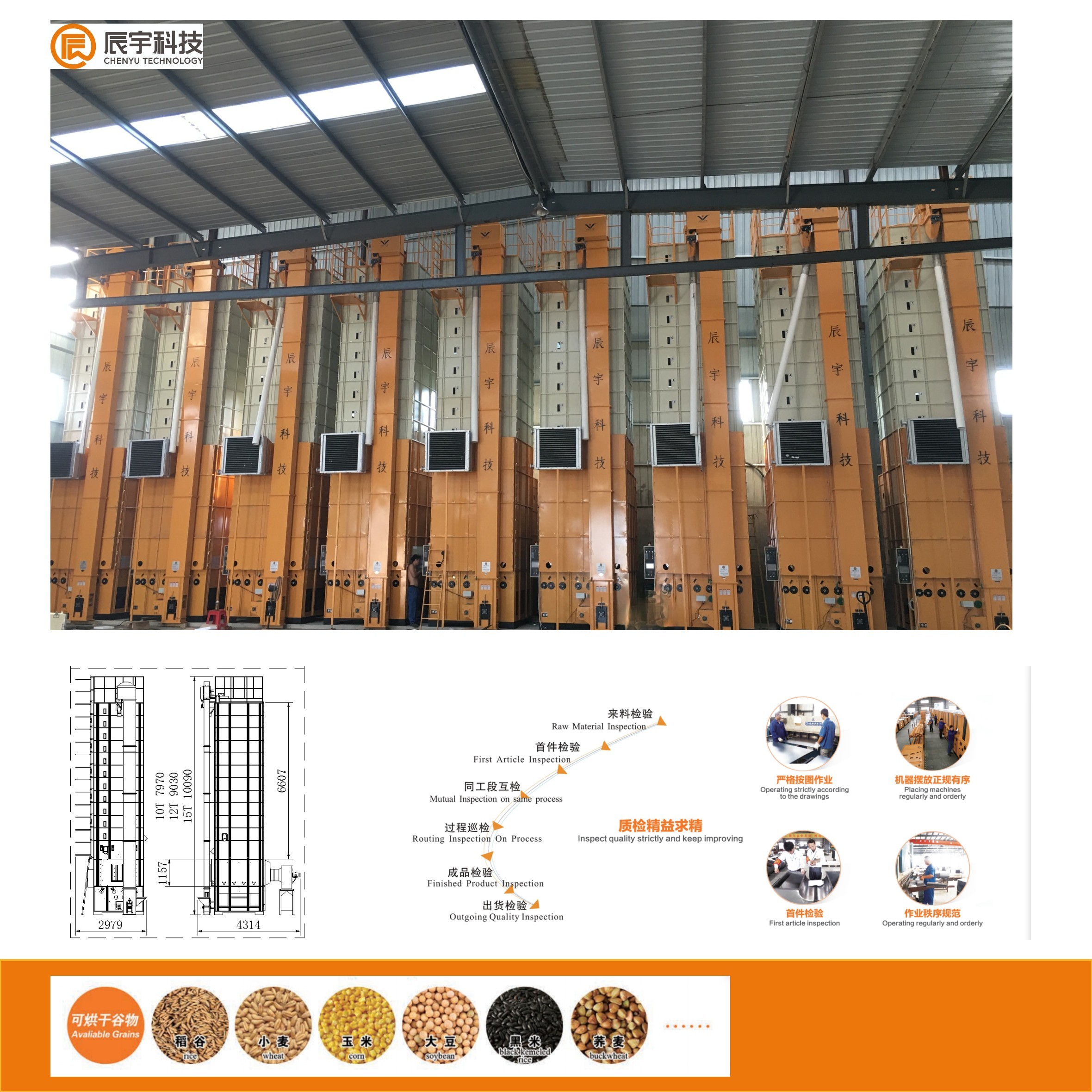

Paddy Dryer System
Chenyu Dryer can be systemized to suit customer’s capacity requirements.
5-unit per 1 system is available. By the system, energy produced by husk burner (option) is utilized efficiently.
Key Parameters:
| Model (Cross type ) | 5H-12 (12T/batch) |
||
| Structure | Batch type circulating | ||
| Drying way | Indirect heating | ||
| Cyclic batch | 12 | ||
Loading capacity |
paddy(kg) | 2300-12000 | |
| wheat(kg) | 2700-12000 | ||
| Total weight(kg) | 2800 | ||
| Diemension Body (L×W×H)mm |
2106×2080×7910 | ||
| Diemension (L×W×H)mm |
4314×2979×9030 | ||
Ventilation fan |
Model | 4-72-6A | |
| rated air flow(m3/h) | 6677-13353 | ||
| Burner ( Optional) |
Model | husk burner/gas burner/Diesel burner | |
| Ignition | manual | ||
| electricity | Voltage/frequence | three phase 380V single phase 220V/50hz | |
| kW motor power | 7.87 | ||
| function | loading time |
paddy(min) | 55-65 |
| wheat(min) | 50-60 | ||
unloading time |
paddy(min) | 55-65 | |
| wheat(min) | 50-60 | ||
| drying rate (%/h) | 0.5-1.2% | ||
| device | safety device | Full load buzzer,Thermal-over relay,Temperature Control Instrument, Hot air temperature sensor, Overload protection device, Leakage protection device | |
| standard device | Online moisture monitor, Conveying system, Unloading system, Drying system, Tempering system, Elevator, Exhaust fan in low noise, Automatic control system | ||
Key inspection control
Customer case
