ANHUI CHENYU MECHNICAL CO.LTD
| Place of Origin: | LU'AN CHINA |
|---|---|
| Brand Name: | ChenYu Technology |
| Certification: | ISO9001, ISO14001, CE |
| Model Number: | 5HCY-15H |
| Minimum Order Quantity: | 1 Set |
| Price: | USD 16500-19500 |
| Packaging Details: | High-grade wooden case with reinforcing rib and vane or follow customer request |
| Delivery Time: | 30 working days or To be negotiated |
| Supply Ability: | 100set /30days |
| Type: | Paddy Drying Machine | Use: | Rice Paddy Drying |
|---|---|---|---|
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Capacity: | 15ton/batch |
| Dimension: | 4314×2979×10090 | Power: | 7.87 |
| Drying Type: | Cross Type | Applicable Industries: | Food & Beverage Factory, Farms, Food Shop, Food & Beverage Shops |
| Drying Rate: | 0.5-1.2% | Color: | Yellow & Gray |
| High Light: | Paddy Dryer Manufacturer,Circulating Paddy Dryer,15ton/batch Cross Flow Grain Dryer |
||

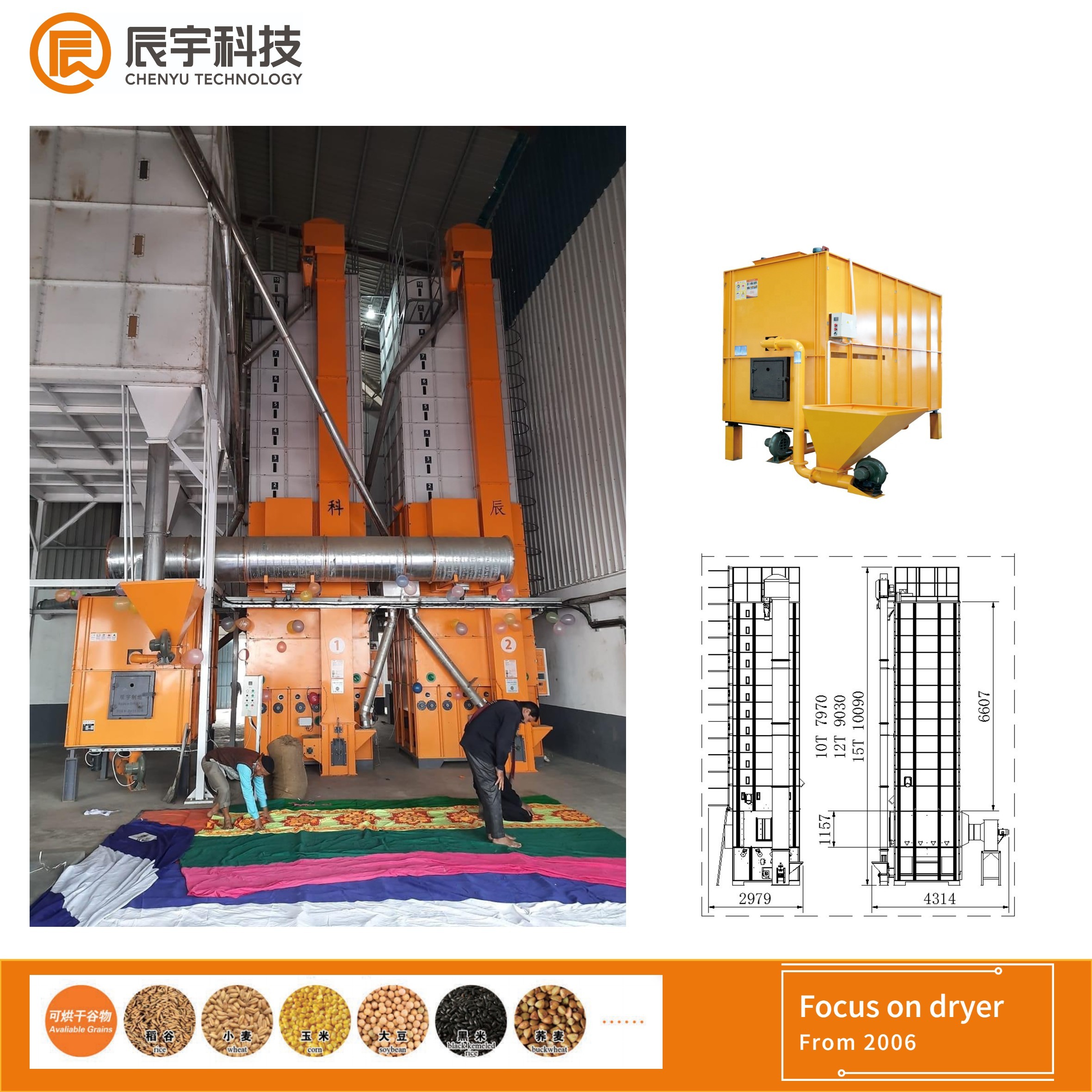

5HCY-15H 15/Tons Per Batch Cross Flow Type Paddy Dryer Machine With On-Line Moisture
Our Product Main Characteristics:
Chenyu grain 5HCY-15H low-temperature grain dryer applies multiple heat sources, such as diesel, gas and biomass.
The husk type dryer attains zero CO2 net emission, low drying costs, easy operation and management, energy-saving and eco friendly.
Low-temp and constant temperature drying yields high-quality and high-price grains and seeds with stable consistent quality, reduces operation costs and increases profitability. Chenyu, according to grain varieties and customer demands, provides competitive dryers and a total solution of least input costs & highest energy-efficiency. With a well-built customer service and maintenance system,
Our Key Parameters:
| Model (Cross type ) | 5HCY-15H (15T/batch) |
||
| Structure | Batch type circulating | ||
| Drying way | Indirect heating | ||
| Cyclic batch | 15 | ||
Loading capacity |
paddy(kg) | 2300-15000 | |
| wheat(kg) | 2700-15000 | ||
| Total weight(kg) | 3000 | ||
| Diemension (L×W×H)mm |
4314×2979×10090 | ||
Ventilation fan |
Model | 4-72-6A | |
| rated air flow(m3/h) | 6677-13353 | ||
| Burner ( Optional) |
Model | husk burner/gas burner/Diesel burner | |
| Ignition | manual | ||
| electricity | Voltage/frequence | three phase 380V single phase 220V/50hz | |
| kW motor power | 7.87 | ||
| function | loading time |
paddy(min) | 55-70 |
| wheat(min) | 50-65 | ||
unloading time |
paddy(min) | 55-70 | |
| wheat(min) | 50-65 | ||
| drying rate (%/h) | 0.5-1.2% | ||
| device | safety device | Full load buzzer,Thermal-over relay,Temperature Control Instrument, Hot air temperature sensor, Overload protection device, Leakage protection device | |
| standard device | Online moisture monitor, Conveying system, Unloading system, Drying system, Tempering system, Elevator, Exhaust fan in low noise, Automatic control system | ||
