Place of Origin: | LU'AN,CHINA |
---|---|
Brand Name: | ChenYu Technology |
Certification: | ISO9001, ISO14001, CE |
Model Number: | 5H-21 |
Minimum Order Quantity: | 1 Set |
Price: | 16500~19500 |
Packaging Details: | Wooden Case With Rib or As Clients' Request |
Delivery Time: | 30 Working Days |
Supply Ability: | 100 Sets per Month |
Type: | Grain Drying Equipment | Use: | Corn Drying |
---|---|---|---|
Loading Capacity: | 2700-15000 KG | Net Weight: | 5400 KG |
Diemension (L×W×H)mm: | 3480×4145×11437 | Voltage: | Three Phase 380V/ Single Phase 220V/50hz |
Power: | 13.7KW | Loading Time: | 50-65 Mins |
Applicable Industries: | Food & Beverage Factory, Farms, Food Shop, Food & Beverage Shops | Unloading Time: | 50-65 Mins |
Drying Rate%/H: | 0.5-1.2% | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
Warranty: | 18 Months | ||
High Light: | 15000 KG Corn Dryer Machine,220V Corn Dryer Machine,380V Small Corn Dryer |

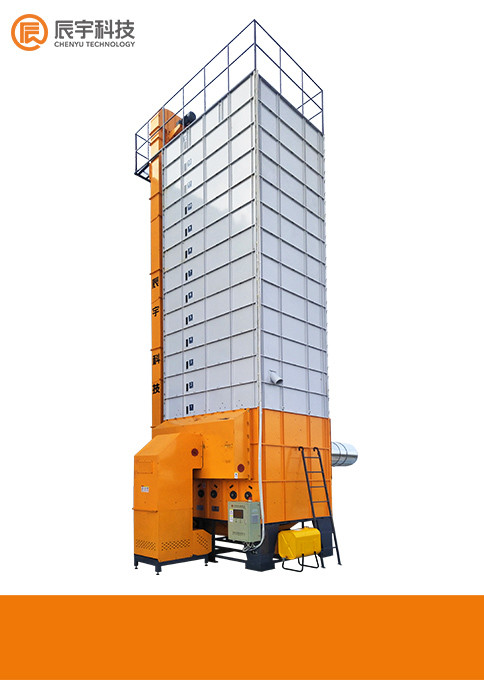

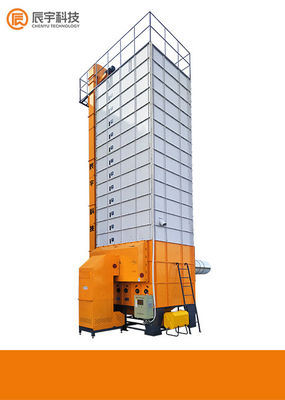

21 Tons/Batch Crossed Flow Type with Screw Conveyor Corn Dryer Matched with Burner
Product Main Characteristics:
1, Using horizontal multi-slot dryer section, grain crisscrossed loop cycle, hot exchange and evaporative way of drying to make sure the drying is evenly and fully;
2, Prevent drying crack broken rice we adopt constant drying speed control, precipitation rate and air temperature controlled by computer, without manual settings;
3, Prevent grain deterioration of the grain, machine running under proper temperature ;
4, Prevent excessive drying adopting automatic, accurate and safe water monitoring devices, it can be shut down automatic;
5, Body of tower is low and compact, easy to be installed;
6, High moisture rice and wheat quality also can be dried, widely used for rice, wheat, corn, soybeans and other crops;
7, Safe, reliable, easy to be cleaned;
8, A variety of fuels available, economic, environmentally friendly;
9, Easy to maintain, convenient to use;
10, Excellent quality raw materials for drying tower body, more durable.
Parameters:
Model | 5H-21 |
Loading Capacity | 21 Tons |
Diemension Body (L×W×H)mm |
3480 x 4145 x 11437 |
Total weight(KG) | 5400 |
Voltage/ Frequence | Three Phase 380V, Single Phase220V/50HZ ( Or Customized) |
Total Motor Power (KW) | 13.7 |
Drying Rate (%/h) | 0.5-1.2% |
Broken Rate (%) | ≦0.5% |
***This grain dryer also can dry following material***:
Rice Paddy, Corn, Wheat, Sesame, Rapeseed, Peanut, Melon seeds, Cotton seeds, Soybean, Mung bean and so on
1. good varieties
2. good planting management
3.Timely harvest, not pre-mature ,not too ripe
4. Timely drying , avoid Aflatoxin
5. Low temperature and even drying , decrease the broken corn
6. Using good dryer and technology
7. Strict control on moisture rate
8. 10-15 low temperature storage
