Place of Origin: | LU'AN,CHINA |
---|---|
Brand Name: | ChenYu Technology |
Certification: | ISO9001, ISO14001, CE |
Model Number: | 5HCY-15H |
Minimum Order Quantity: | 1 Set |
Price: | 16500~19500 |
Packaging Details: | Wooden Case With Rib or As Clients' Request |
Delivery Time: | 30 Working Days |
Supply Ability: | 100 Sets per Month |
Type: | Mechanical Corn Dryer | Use: | Corn Drying |
---|---|---|---|
Loading Capacity: | 2700-15000 KG | Net Weight: | 3000 KG |
Diemension (L×W×H)mm: | 4314×2979×10090 | Voltage: | Three Phase 380V/ Single Phase 220V/50hz |
Power: | 7.87 KW | Loading Time: | 50-65 Mins |
Applicable Industries: | Food & Beverage Factory, Farms, Food Shop, Food & Beverage Shops | Unloading Time: | 50-65 Mins |
Drying Rate%/H: | 0.5-1.2% | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
Warranty: | 18 Months | ||
High Light: | 5HCY-15H Corn Dryer Machine,7.87KW Corn Dryer Machine,15 Tons/Batch Corn Drying Machine |

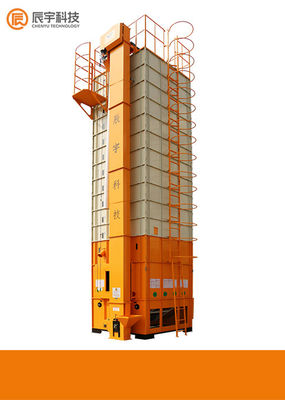

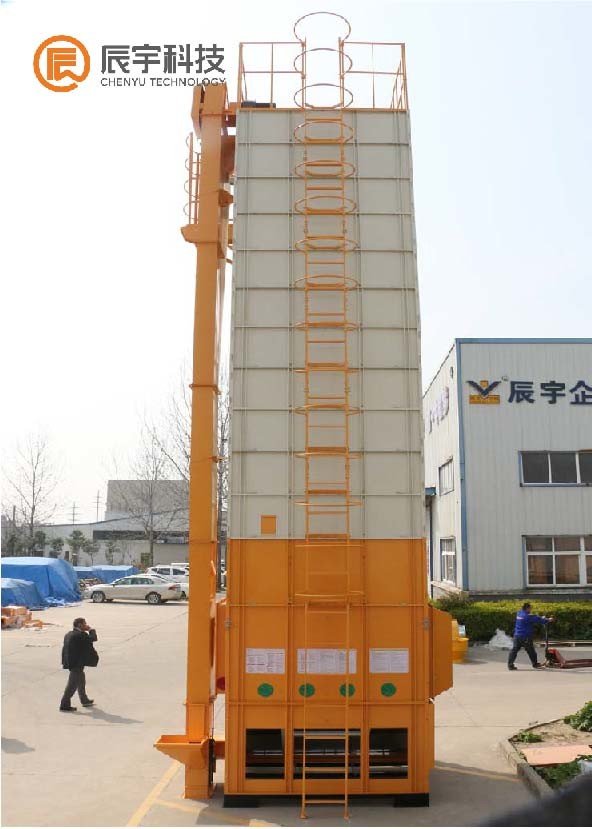

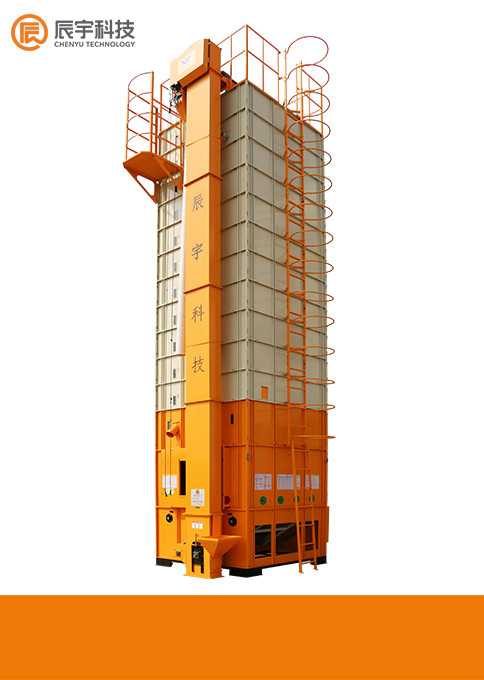

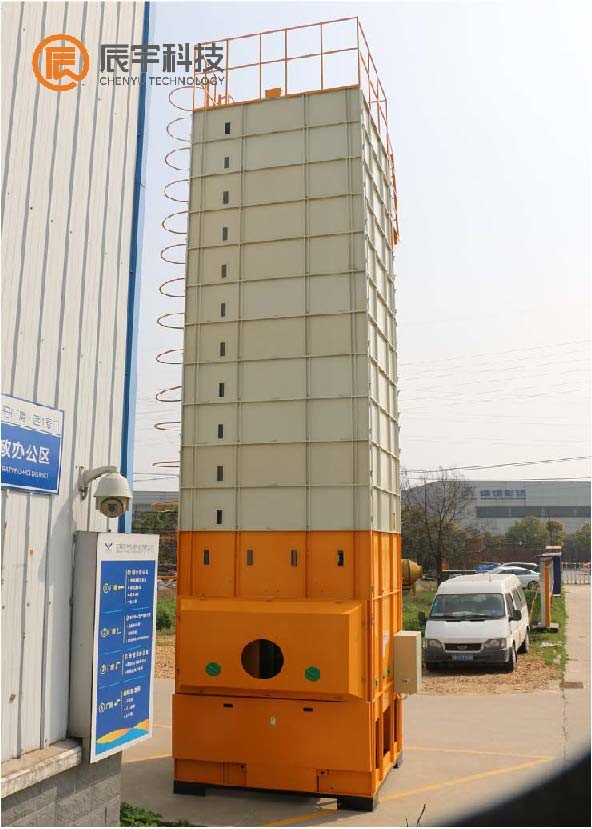

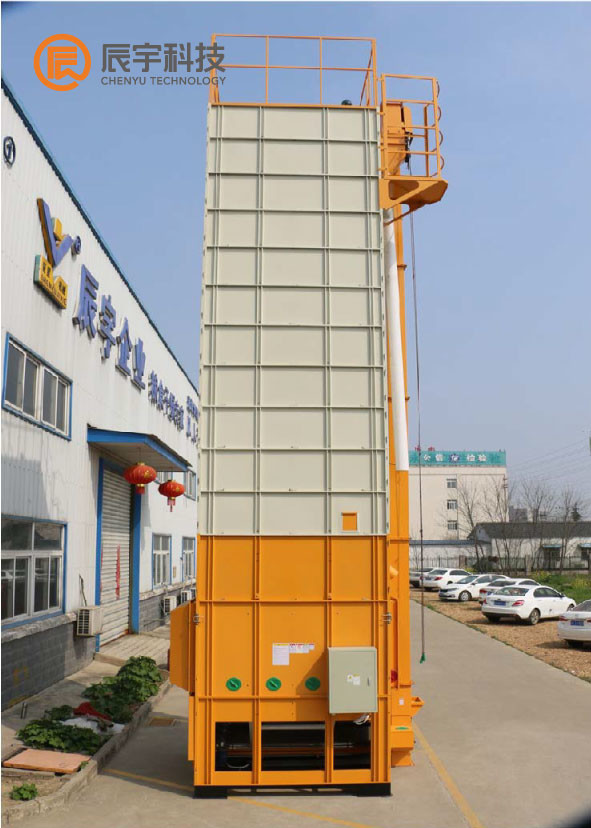

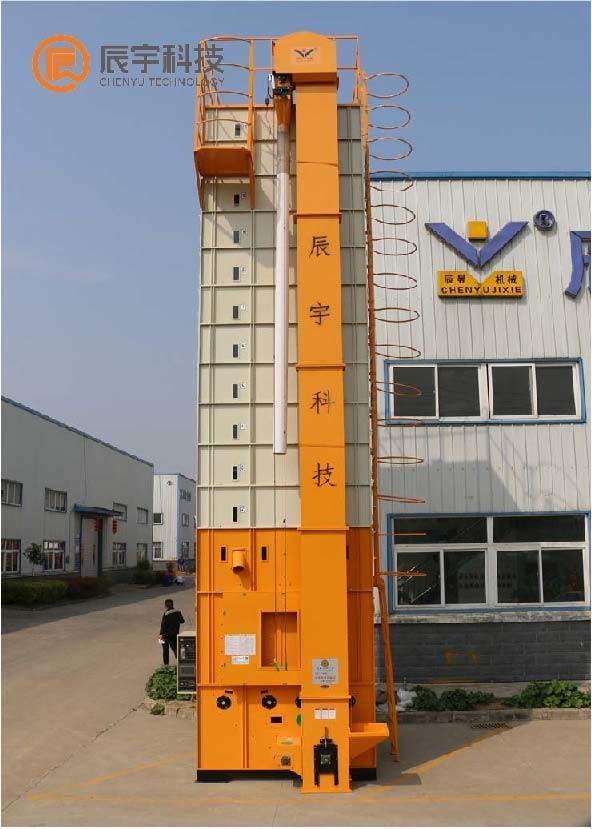

15 Tons/Batch Crossed Flow Screw Conveyor Corn Dryer Matched With Husk Burner
Main Characteristics:
1, Using horizontal multi-slot dryer section, grain crisscrossed loop cycle, hot exchange and evaporative way of drying to make sure the drying is evenly and fully;
2, Prevent drying crack broken rice we adopt constant drying speed control, precipitation rate and air temperature controlled by computer, without manual settings;
3, Prevent grain deterioration of the grain, machine running under proper temperature ;
4, Prevent excessive drying adopting automatic, accurate and safe water monitoring devices, it can be shut down automatic;
5, Body of tower is low and compact, easy to be installed;
6, High moisture rice and wheat quality also can be dried, widely used for rice, wheat, corn, soybeans and other crops;
7, Safe, reliable, easy to be cleaned;
8, A variety of fuels available, economic, environmentally friendly;
9, Easy to maintain, convenient to use;
10, Excellent quality raw materials for drying tower body, more durable.
Parameters:
Model (Cross type ) | 5HCY-15H (15T/batch) |
||
Structure | Batch type circulating | ||
Drying way | Indirect heating | ||
Cyclic batch | 15 | ||
Loading capacity |
paddy(kg) | 2300-15000 | |
wheat(kg) | 2700-15000 | ||
Total weight(kg) | 3000 | ||
Diemension Body (L×W×H)mm |
2106×2080×9000 | ||
Diemension (L×W×H)mm |
4314×2979×10090 | ||
Ventilation fan |
Model | 4-72-6A | |
rated air flow(m3/h) | 6677-13353 | ||
Burner ( Optional) |
Model | husk burner/gas burner/Diesel burner | |
Ignition | manual | ||
electricity | Voltage/frequence | three phase 380V single phase 220V/50hz | |
kW motor power | 7.87 | ||
function | loading time |
paddy(min) | 55-70 |
wheat(min) | 50-65 | ||
unloading time |
paddy(min) | 55-70 | |
wheat(min) | 50-65 | ||
drying rate (%/h) | 0.5-1.2% | ||
device | safety device | Full load buzzer,Thermal-over relay,Temperature Control Instrument, Hot air temperature sensor, Overload protection device, Leakage protection device | |
standard device | Online moisture monitor, Conveying system, Unloading system, Drying system, Tempering system, Elevator, Exhaust fan in low noise, Automatic control system |
***This grain dryer also can dry following material***:
Rice Paddy, Corn, Wheat, Sesame, Rapeseed, Peanut, Melon seeds, Cotton seeds, Soybean, Mung bean and so on
1. good varieties
2. good planting management
3.Timely harvest, not pre-mature ,not too ripe
4. Timely drying , avoid Aflatoxin
5. Low temperature and even drying , decrease the broken corn
6. Using good dryer and technology
7. Strict control on moisture rate
8. 10-15 low temperature storage
