ANHUI CHENYU MECHNICAL CO.LTD
| Place of Origin: | LU'AN,China |
|---|---|
| Brand Name: | ChenYu Technology |
| Certification: | ISO 9001， ISO14001, CE |
| Model Number: | 5HCY-15H |
| Minimum Order Quantity: | 1 Set |
| Price: | 16500-19500 |
| Packaging Details: | Wooden case |
| Delivery Time: | 30days after receive the payment |
| Supply Ability: | 100 Sets |
| Type: | Grain Drying Equipment | Loading Capacity: | 2700-15000 KG |
|---|---|---|---|
| Net Weight: | 3000 KG | Diemension (L×W×H)mm: | 4314×2979×10090 |
| Voltage: | 220V/380V | Power: | 7.87 KW |
| Loading Time: | 50-70 Mins | Unloading Time: | 50-70 Mins |
| Drying Rate %/H: | 0.5-1.2% | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| High Light: | 15T/Batch Grain Drying Machine,15000KG Grain Drying Machine,15T/Batch Industrial Grain Dryer |
||

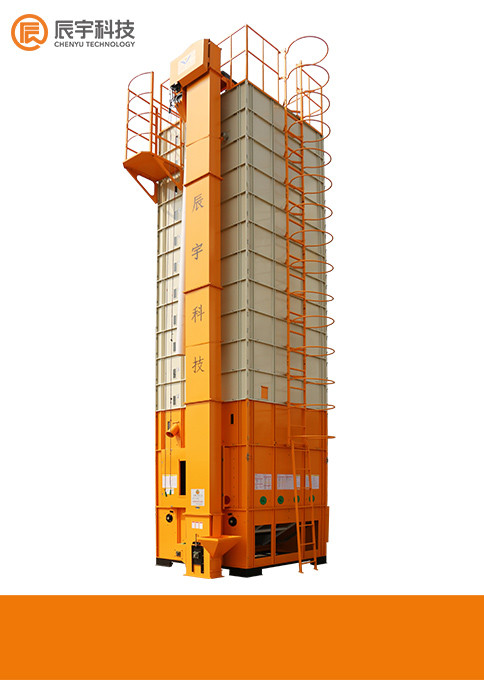

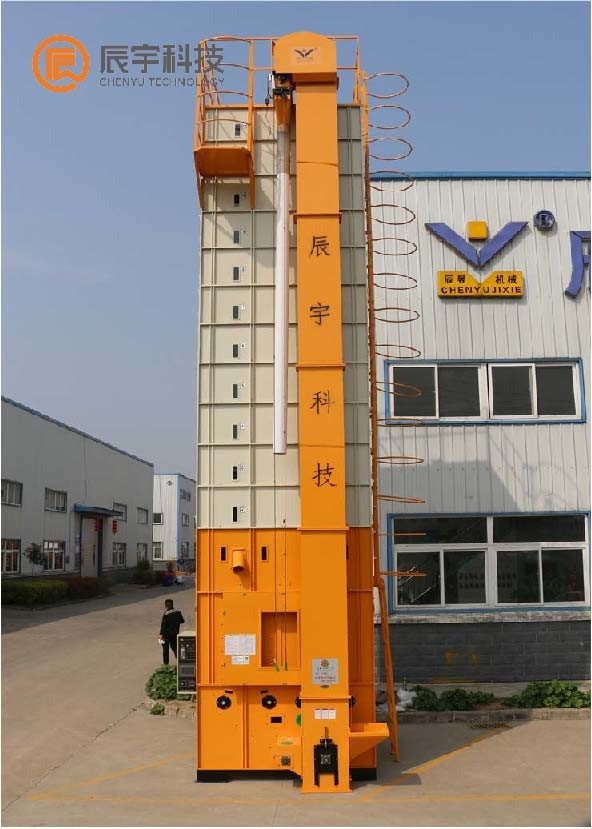

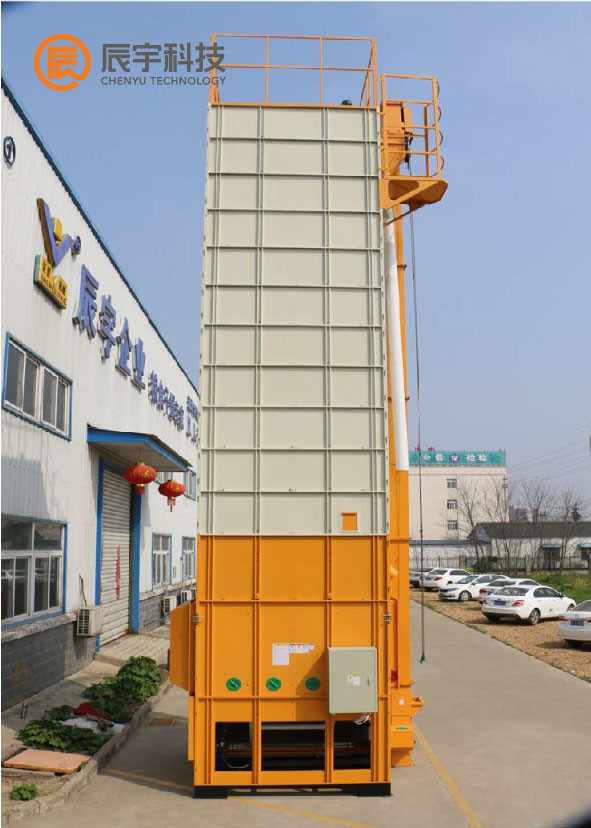

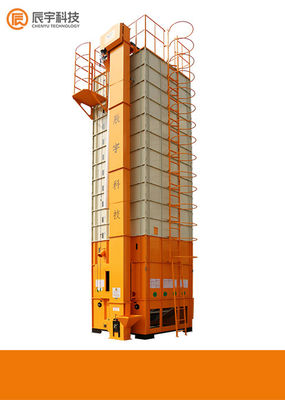

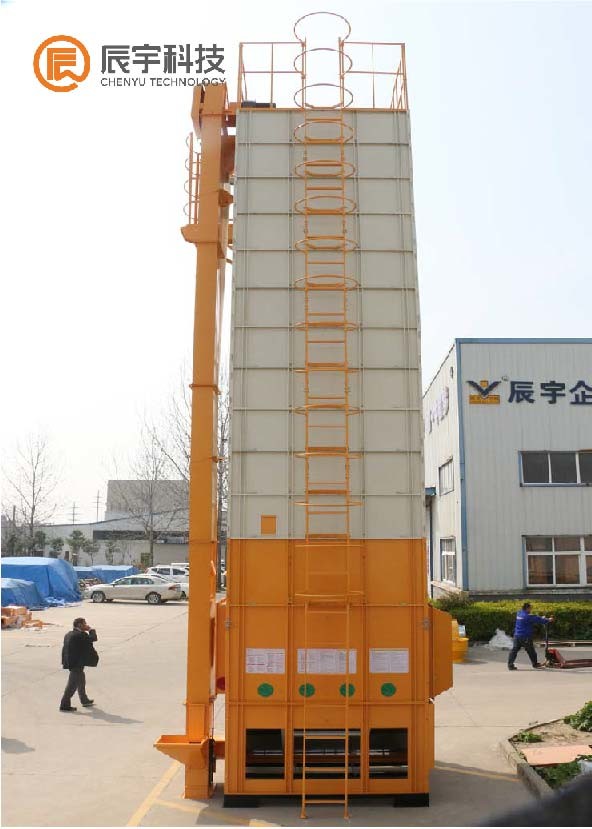

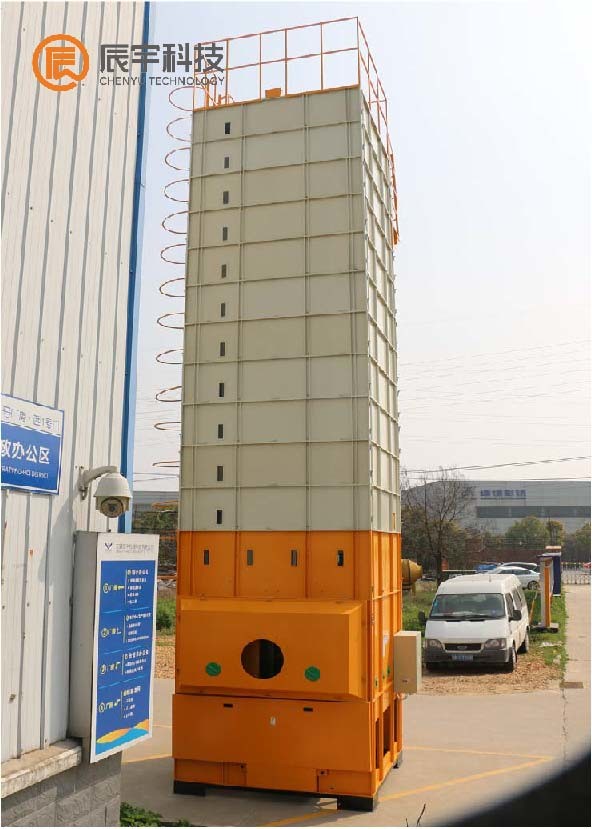

15ton/Batch Grain Drying Machine For Parboiled Rice 7.87kw
The Production Information:
1, Using horizontal multi-slot dryer section, grain crisscrossed loop cycle, hot exchange and evaporative way of drying to make sure the drying is evenly and fully;
2, Prevent drying crack broken rice we adopt constant drying speed control, drying rate and air temperature controlled by computer, without manual settings;
3, Prevent grain spoiled, machine running under proper temperature ;
4, Prevent excessive drying adopting automatic, accurate and safe water monitoring devices, it can be shut down automatic;
5, Body of tower is low and compact, easy to be installed;
6, High moisture rice and wheat quality also can be dried, widely used for rice, wheat, corn, soybeans and other crops;
7, Safe, reliable, easy to be cleaned;
8, A variety of fuels available, economic, environmentally friendly;
9, Easy to maintain, convenient to use;
10, Excellent quality raw materials for drying tower body, more durable.
The Key Parameters:
| Model (Cross type ) | 5HCY-15H (15T/batch) |
||
| Structure | Batch type circulating | ||
| Drying way | Indirect heating | ||
| Cyclic batch | 15 | ||
Loading capacity |
paddy(kg) | 2300-15000 | |
| wheat(kg) | 2700-15000 | ||
| Total weight(kg) | 3000 | ||
| Diemension Body (L×W×H)mm |
2106×2080×9000 | ||
| Diemension (L×W×H)mm |
4314×2979×10090 | ||
Ventilation fan |
Model | 4-72-6A | |
| rated air flow(m3/h) | 6677-13353 | ||
| Burner ( Optional) |
Model | husk burner/gas burner/Diesel burner | |
| Ignition | manual | ||
| electricity | Voltage/frequence | three phase 380V single phase 220V/50hz | |
| kW motor power | 7.87 | ||
| function | loading time |
paddy(min) | 55-70 |
| wheat(min) | 50-65 | ||
unloading time |
paddy(min) | 55-70 | |
| wheat(min) | 50-65 | ||
| drying rate (%/h) | 0.5-1.2% | ||
| device | safety device | Full load buzzer,Thermal-over relay,Temperature Control Instrument, Hot air temperature sensor, Overload protection device, Leakage protection device | |
| standard device | Online moisture monitor, Conveying system, Unloading system, Drying system, Tempering system, Elevator, Exhaust fan in low noise, Automatic control system | ||
Our key quality control
Our product operation pricinpal
Our customer case and compliment
Our FAQ
Q1: What's your working volts for the rice milling machines?
A: Our machines mainly work on with 380V 50HZ and 3 phases. If have other demands for the working volts, please let us know in advance. We will check and customize for you
Q2: What's your lead and delivery time?
A: Usually machines should be prepared well within 15-20 days, including Sundays when deposit has been confirmed. Delivery time should depend on customers’ demands for the delivery way.
Q3: How is your warranty?
A: Warranty period is 12 (Twelve) months from the startup on site.
Q4: How could I do if I meet some troubles on operation?
A:We will let our staffs contact with you to solve it on line. If necessary, we can send engineers and translator to your factory to train your tech staffs.
