ANHUI CHENYU MECHNICAL CO.LTD
| Place of Origin: | LU'AN,China |
|---|---|
| Brand Name: | ChenYu Technology |
| Certification: | ISO 9001， ISO14001, CE |
| Model Number: | 5H-10 |
| Minimum Order Quantity: | 1 Set |
| Price: | 16500-19500 |
| Packaging Details: | Wooden case |
| Delivery Time: | 30days after receive the payment |
| Supply Ability: | 100 Sets |
| Type: | Grain Drying Equipment | Use: | Grain Drying |
|---|---|---|---|
| Loading Capacity: | 2300-10000 KG | Net Weight: | 2700 KG |
| Unloading Time: | 50-60 Mins | Power: | 7.87KW |
| Drying Metchod: | Cross Type With Screem Sheet | Applicable Industries: | Food & Beverage Factory, Farms, Food Shop, Food & Beverage Shops |
| High Light: | 10T/Batch Vertical Grain Dryer,10000 KG Vertical Grain Dryer,2300 KG Grain Dryer Equipment |
||

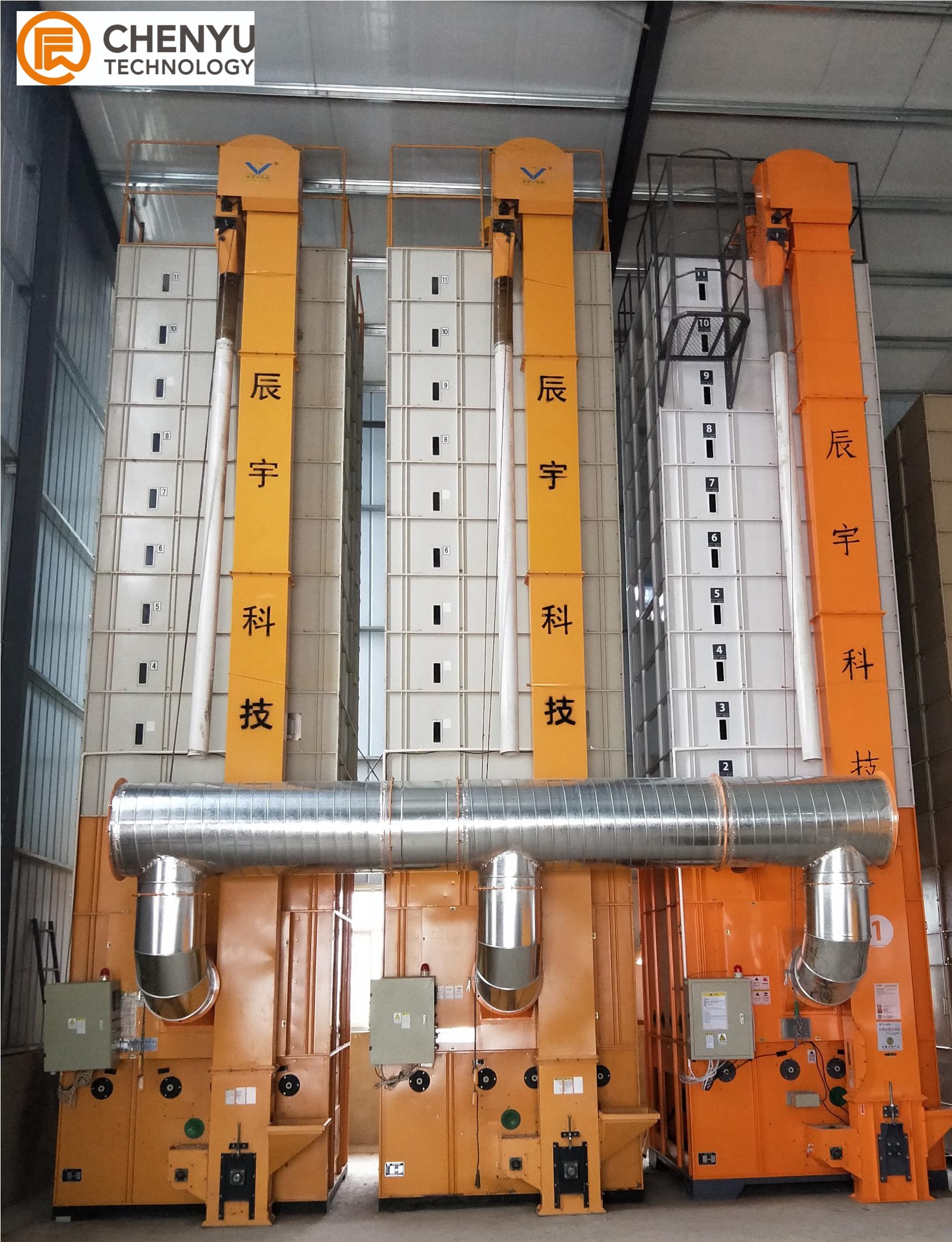

10T/Batch Grain Drying Machine With 25% ~13% Moisture Dryer
Production Information:
1. Low-speed spiral conveying with low grain damage;
2. Low damage elevator for high grain drying quality;
3. Thin drying layer with large airflow to ensure high drying efficiency and quality;
4. Equipped with impurities clearance device to reduce the impurity rate;
5. Special wear-resisting material used on the grains flow part for long service life;
6. Special wear-resisting material likes stainless steel used on the collecting unit and low speed can improve wear resistance and reduce grain damage;
7. Automated drying monitoring system for easy operation and management;
8. Optional installation of imported online grain moisture tester for real-time precise moisture test;
9. Multi heat supply models and fuel models available for drying cost saving.
Our Key Parameters:
| Model (Cross type ) | 5H-10 (10T/batch) | ||
| Structure | Batch type circulating | ||
| Drying way | Indirect heating | ||
| Cyclic batch | 10 | ||
Loading capacity |
paddy(kg) | 2300-10000 | |
| wheat(kg) | 2700-10000 | ||
| Total weight(kg) | 2700 | ||
| Diemension Body (L×W×H)mm |
|||
| Diemension (L×W×H)mm |
4314*2979*7970 | ||
Ventilation fan |
Model | 4-72-6A | |
| rated air flow(m3/h) | 6677-13353 | ||
| Burner ( Optional) |
Model | husk burner/gas burner/Diesel burner | |
| Ignition | manual | ||
| electricity | Voltage/frequence | three phase 380V single phase 220V/50hz | |
| kW motor power | 7.87 | ||
| function | loading time |
paddy(min) | 55-65 |
| wheat(min) | 50-60 | ||
unloading time |
paddy(min) | 55-65 | |
| wheat(min) | 50-60 | ||
| drying rate (%/h) | 0.5-1.2% | ||
| device | safety device | Full load buzzer,Thermal-over relay,Temperature Control Instrument, Hot air temperature sensor, Overload protection device, Leakage protection device | |
| standard device | Online moisture monitor, Conveying system, Unloading system, Drying system, Tempering system, Elevator, Exhaust fan in low noise, Automatic control system | ||
