Place of Origin: | Lu'An, China |
---|---|
Brand Name: | ChenYu Technology |
Certification: | ISO9001, ISO14001, CE |
Model Number: | 5HCY-30 |
Minimum Order Quantity: | 1 Set |
Packaging Details: | Wooden Case |
Delivery Time: | 30 Working Days |
Supply Ability: | 100 Sets per Month |
Type: | Maize Grain Dryer | Use: | Maize Drying |
---|---|---|---|
Loading Capacity: | 5000~21000 KG | Net Weight: | 4300 KG |
After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Applicable Industries: | Food & Beverage Factory, Farms, Food Shop, Food & Beverage Shops |
High Light: | 21000 KG Maize Dryer Machine,10.9kw Maize Dryer Machine,380V Cross Flow Dryer |

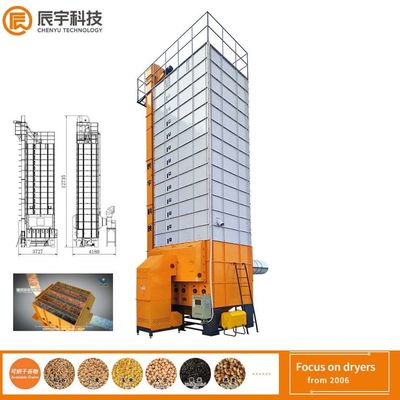

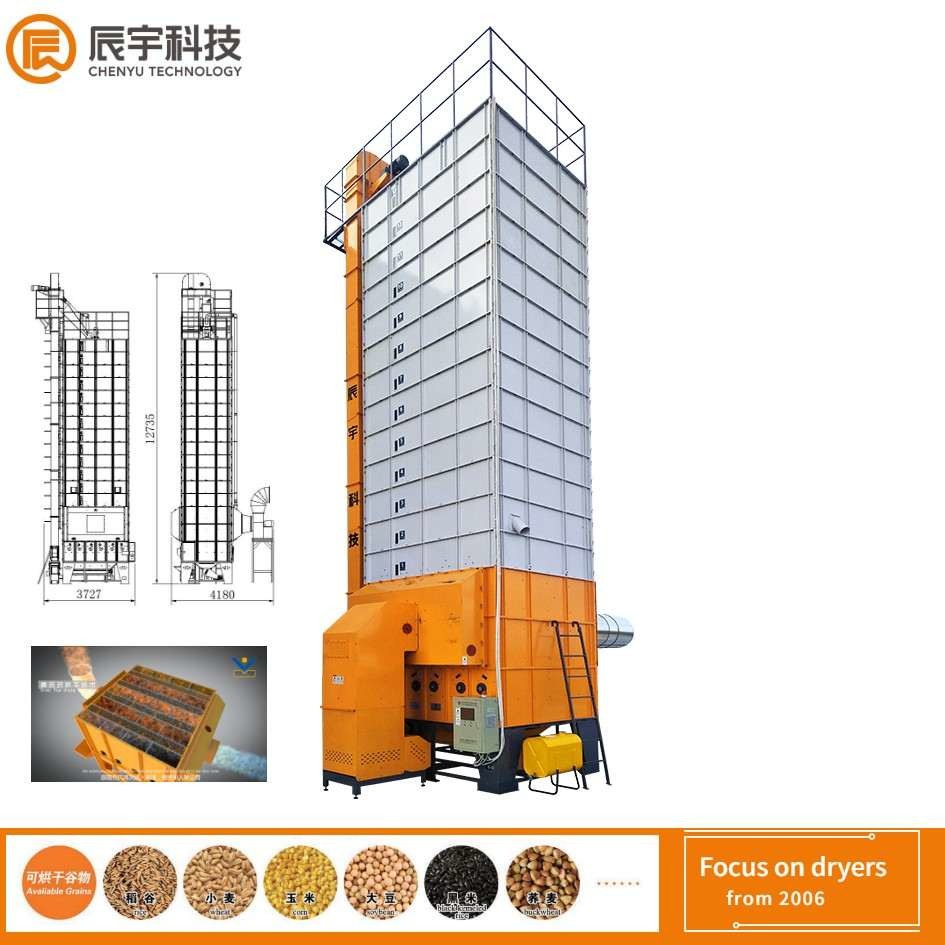

5H-21T Cross Flow Type Maize Dryer Machine 10.9kw With On Line Moisture Control (30%-12%)
Our Product Description
1, Using mix type drying method with angle pipe , hot exchange and evaporative way of drying to make sure the drying is evenly and fully;
2, Prevent drying crack broken rice we adopt constant drying speed control, water reduction rate and air temperature controlled by computer, without manual settings;
3, Prevent grain spoiled, machine running under proper temperature ;
4, Prevent excessive drying adopting automatic, accurate and safe water monitoring devices, it can be shut down automatic;
5, Body of tower is low and compact, easy to be installed;
6, High moisture rice and wheat quality also can be dried, widely used for rice, wheat, corn, soybeans and other crops;
7, Safe, reliable, easy to be cleaned;
8, A variety of fuels available, economic, environmentally friendly;
9, Easy to maintain, convenient to use;
10, Excellent quality raw materials for drying tower body, more durable.
Our Key Parameters:
Model |
5H-21 |
||
Structure |
Batch type circulating |
||
Drying way |
Indirect heating |
||
(t)Cyclic batch |
21 |
||
|
paddy(kg) (capacity=560kg/m3) |
5000-21000 |
|
wheat(kg) (capacity=700kg/m3) |
6000-21000 |
||
Total weight(kg) |
4300 |
||
diemension |
4180×3727×12735 |
||
|
Model |
4-72-7.1A |
|
rated air flow (m3/h) |
16576-8288 |
||
Burner |
Model |
husk burner/gas burner/Diesel burner |
|
Ignition |
Manual |
||
fuel consumption |
40-60 |
||
fuel |
rice hull,firewood,straw,anthracite |
||
electricity |
Voltage/frequence |
Three phase 380V Single phase 220V/50hz |
|
kW motor power |
10.9 |
||
function |
|
paddy(min) |
55-70 |
wheat(min) |
50-65 |
||
|
paddy(min) |
55-70 |
|
wheat(min) |
50-65 |
||
capacity(Kg/h) |
≥2280 |
||
drying capacity (t.%/h) |
≥15 |
||
drying rate (%/h) |
0.5-1.2 |
||
device |
safety device |
Grain temperature sensor, Fault alarm, Full load buzzer,Over0temperature alarm, Thermal-over relay, Hot air temperature sensor, Overload protection device, Leakage protection device |
|
standard device |
Online moisture monitor, Conveying system, Unloading system, Drying system, Tempering system, Elevator, Exhaust fan in low noise, Automatic control system |
Our Key quality control
Our Production line

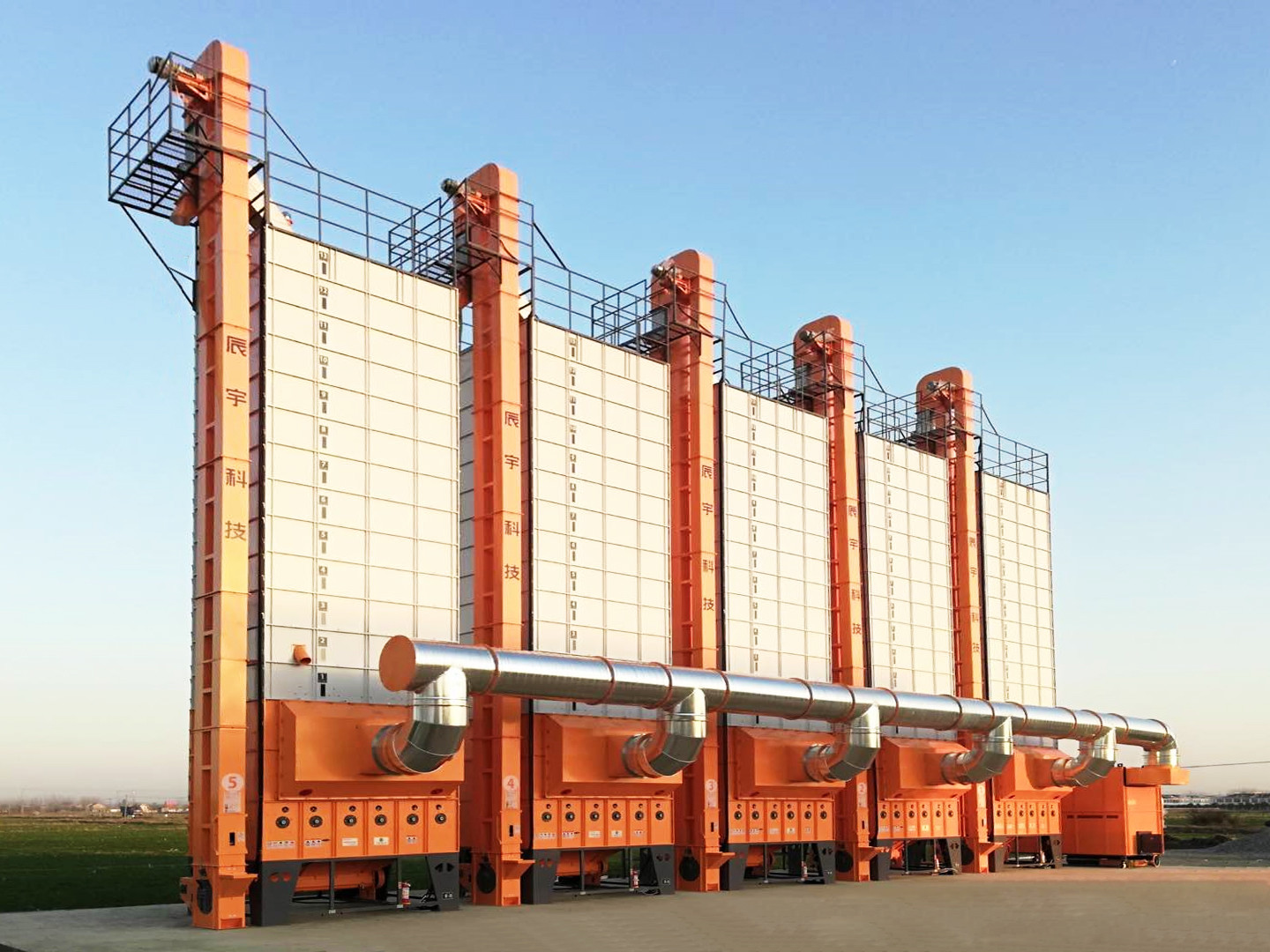

Our customer case
